ATEX drum & IBC container heaters
ATEX drum & IBC container heaters

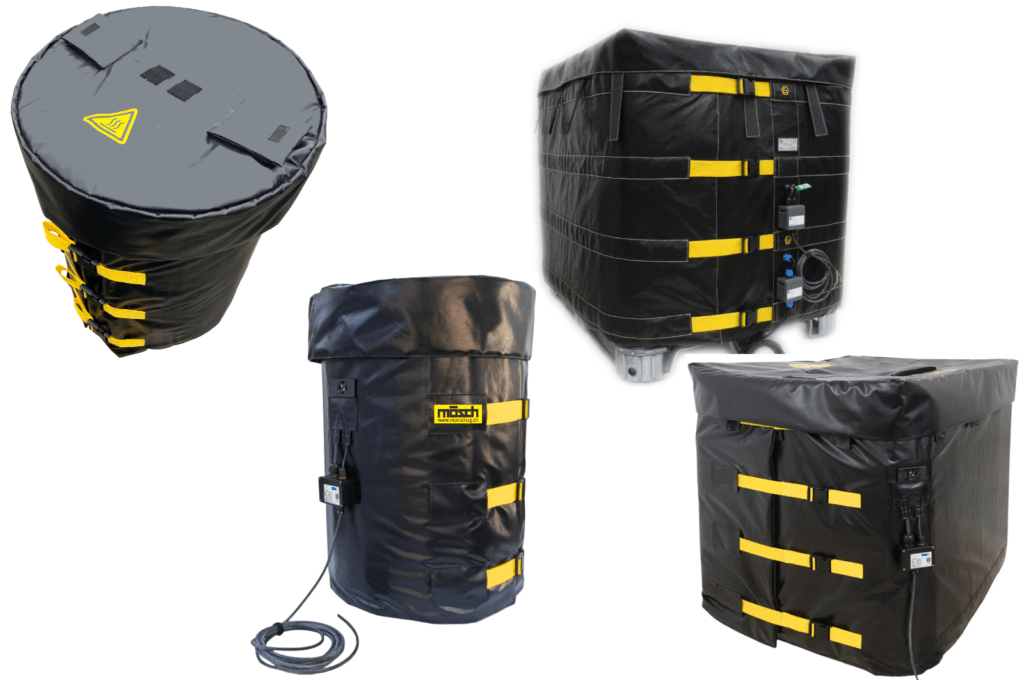

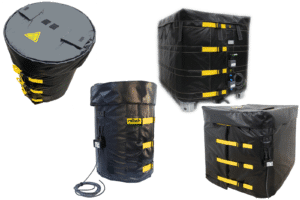

ATEX drum & IBC container heaters are designed for potentially explosive atmospheres. Our certified heating solutions for environments with flammable gases and dust can be used in a variety of industries for frost protection, temperature maintenance and process heating.
Technical data
| Tensions |
230 V |
| Temperature resistance |
up to 200°C depending on version |
| Performance |
Various versions |
| Dimensions |
Various versions |
Areas of application
- • Waste disposal
- • Paints and varnishes
- • Drum heaters for the chemical and petrochemical industry
- • Resins
- • for drums up to 200 L made of metal/plastic
- • for IBC containers 1000 L
- • Adhesives and sealants
ATEX IBC container heaters -40 to 200°C
EX-protected IBC container heaters
The ATEX IBC heater is a safe, efficient and customizable heating solution for IBC containers in hazardous areas.
IBC container heaters are used for frost protection, temperature maintenance and process heating in a variety of industries.
Technical specifications
- • Heats IBC containers from -40°C to +200°C for steel (+80°C for plastic) and are ideal for industries such as oil, gas and pharmaceuticals
- • Designed for standard 1000 liter IBCs incl. optional insulating lid, for indoor/outdoor use
- • with IP65/I dust and water jet protection
- • Ready to use and fully equipped with EC type certificate
- • Variable voltage, power and size options, for temperature classes T6 to T3
- • Compatible with optional ATEX controller for temperature management
ATEX drum heaters up to +180°C
Keep frost-free or keep viscosity constant
ATEX drum heaters are an extremely reliable and safe solution for heating substances stored in steel or plastic drums. It is designed to meet the requirements of the ATEX directive to ensure safe use in potentially explosive atmospheres. The heating jacket is designed to fit the dimensions of a standard drum and provide highly efficient and effective heating. The ATEX drum heaters are suitable for use in various industries such as oil, gas, chemicals and pharmaceuticals.
The ATEX drum heaters are available in a range of drum sizes and versions to suit different types of drums and dimensions. They can be used to heat a wide range of materials, including liquids, pastes and solids.
The ATEX drum heaters must be controlled and limited with an ATEX controller/limiter, which is available separately from us or can be integrated into the customer’s own ATEX controller system. Our ATEX controller/limiter is designed to meet the requirements of the ATEX directive and can be used for a variety of applications in potentially explosive atmospheres.
The controller/limiter is easy to operate and provides accurate temperature control and limitation, which can be used for a variety of applications to ensure optimum performance and efficiency.
Overall, the ATEX series drum heaters are a safe, efficient and customizable heating solution for drums in hazardous areas. They are suitable for use in a wide range of industries and can help protect employees and facilities from the risks associated with potentially explosive atmospheres.
Technical specifications
- • Zones 1/2 (gas); 21/22 (dust)
- • Sensors installed: 2 x Pt100 (EX-i, EX-e)
- • Max. Operating temperature: +180°C / +200°C (steel drum), +70°C (plastic drum)
- • Electrical terminal boxes for network (EX-e) / Sensor (EX-i)
- • Rated power: 350W, 400W, 800W, 1200W (30L, 60L, 120L, 200L)
- • Available in standard sizes for 30L, 60L, 120L and 200-220L drums
- • Thermocouple for temperature classes T6, T5, T4 and T3
- • Protection class IP65/I, i.e. dustproof and protected against water jets and rain
- • System approval with a certificate for EC type examination in accordance with Directive 2014/34/EU Annex III.
- • delivered fully set up and ready to use without further acceptance procedures
- • Robust, flexible and dissipative; can be used both indoors and outdoors
| Article no. | Container | Grösse | Spannung | Leistung | Einsatztemperatur |
|---|---|---|---|---|---|
|
KU 239084 |
IBC 1000 L |
4400 × 1000 mm |
230 V |
2400 W |
Stahl IBC: -40 bis +180 / 200°C Kunststoff IBC: 80°C |
| Article no. | Barrels | Grösse | Spannung | Leistung | Einsatztemperatur |
|---|---|---|---|---|---|
|
KU 238806 |
200 – 220 L |
2100 x 800 mm |
230 V |
1200 W |
Stahlfass: -40 bis +180 / 200°C Kunststoff: 70°C |
