Drum & IBC container heaters

IBC container heaters, drum heaters, drum base heaters, insulating jackets and waterproof covers for 1000L IBC containers and 200L drums
Request a Quote +41 62 887 23 33

Drum & IBC container heaters

IBC container heaters, drum heaters, drum base heaters, insulating covers, insulating jackets / Waterproof PVC covers for 200L drums and IBC containers

Technical data

Tensions

110 / 230 V, 400 V, other voltages on request
Temperature resistance

up to 200 °C depending on version
Performance

Various versions
Dimensions

Various versions
Ideal for heating:
  • • Butter e.g. ghee
  • • Fat
  • • Resin
  • • Oil and also diesel
  • • Vaseline
  • • Wax e.g. lanolin (wool wax or wool grease)
  • • Chocolate and other liquid foods
  • • Water

Areas of application

  • • Waste disposal
  • • Paints and varnishes
  • • Drum heaters for the chemical and petrochemical industry
  • • Resins
  • • for drums 25 L to 200 L made of metal/plastic
  • • for IBC containers 1000 L and 640 L
  • • Adhesives and sealants

IBC container heaters 0 to 90 °C / 40 °C

Heating mats for IBC containers

Many materials are viscous at room temperature, which makes them difficult to unload from an IBC container. Syrup, sugar, fats, etc. in particular are difficult to unload as they cannot be poured out of the container. This often leads to loss of products and can therefore be very expensive.

Here, the IBC container is heated to soften the materials and thus reduce the viscosity.

Mösch IBC container heaters are ideal for heating the container contents quickly and efficiently.

Mösch IBC container heaters are available in different versions with up to 3 temperature controllers, each of which can be set from 0 to 90 °C (exception: 1300 W version 0 to 40 °C). This ensures that liquids can be heated quickly and safely and that a specific viscosity is maintained.

The Mösch IBC container heater is of a solid, durable lightweight construction that can be easily and securely attached to any standard 1000 l container using quick-release straps. This means that Mösch IBC container heaters are also ideal for transporting 1000 l containers to keep their contents at a specific viscosity or temperature.

Usage of our IBC insulating lids enables a reduction in heat loss and thus even faster heating of the container contents.

Technical specifications

  • • Polyester coat
  • • Polyester insulation
  • • Silicone-insulated, spiral-wound resistor element
  • • Adjustable quick-release fasteners
  • • Heating time ~ 48 hours (1000 l water from +15°C to +50 °C with 2 x 1000 W heaters and insulating lid)
  • • Supply cable (assembled with CH plug) 3 m
  • • Up to 3 thermostats, 0 – 90 °C / 0-40 °C
  • • Protection class IP40
  • • Insulating lid can also be used

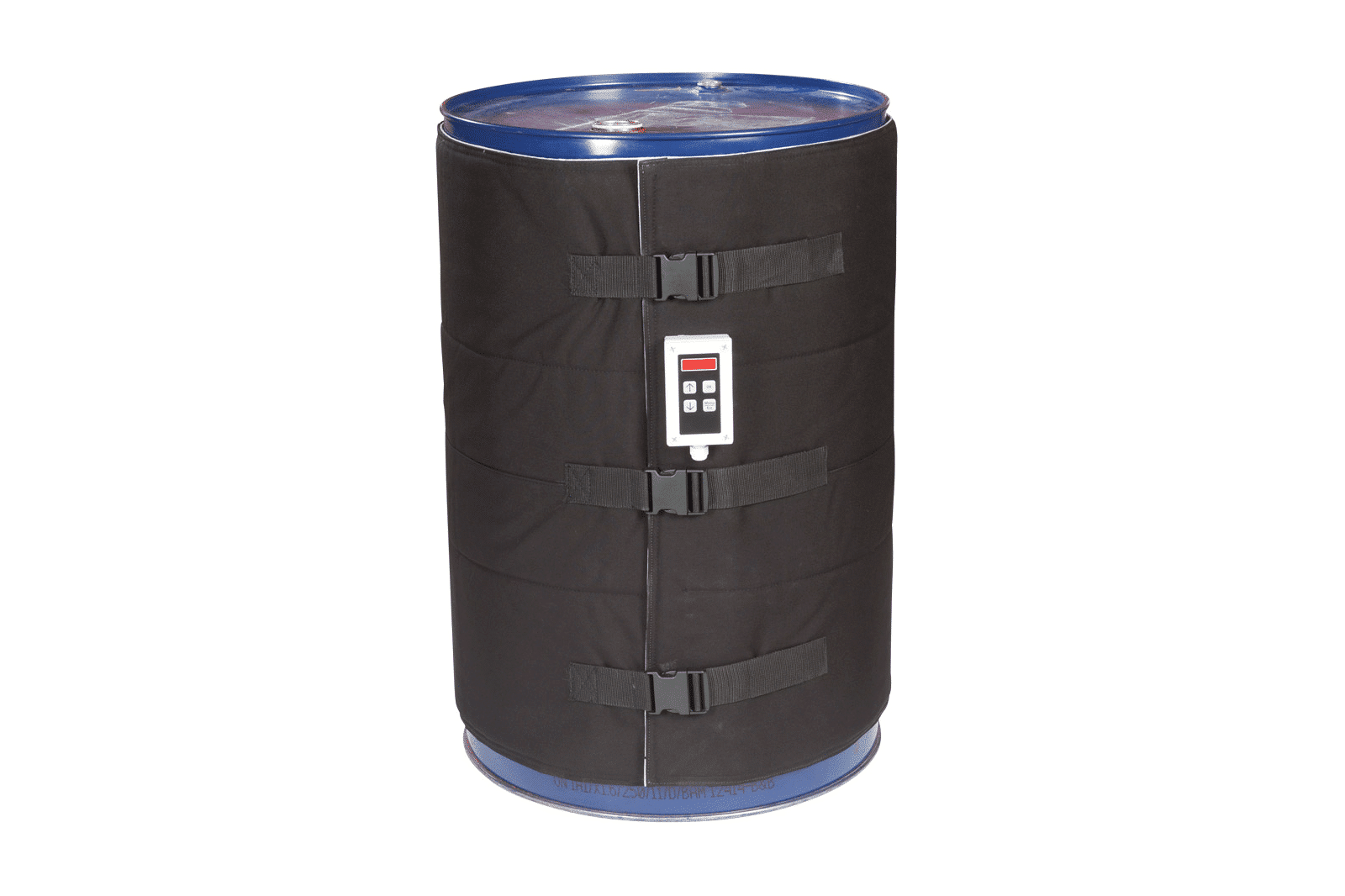

Drum heaters 0 to +90 °C

Keep frost-free or keep viscosity constant

Our drum heaters are perfect for drums where the contents need to be kept at a constant temperature, a certain viscosity or frost-free.

The drum heaters can be set to 0 – 90 °C using a user-friendly thermostat and are therefore perfect for almost any purpose.

Thanks to the solid, high-quality lightweight construction, the drum heaters can be quickly and easily attached to any standard drum in conjunction with the quick-release straps.

To reduce heat loss from the drums, we recommend using our insulating lid.

Technical specifications

  • • Polyester coat
  • • Silicone-insulated, spiral-wound resistor element
  • • Adjustable quick-release fasteners
  • • Supply cable (assembled with CH plug) 3 m
  • • Standard sizes, e.g. 200 l
  • • Thermostat 0-90 °C
  • • Protection class IP40
  • • Heating time ~ 24 hours (200 l water from +20 °C to +82 °C with a 1200 W drum heater)
  • • Barrel underfloor heating can be used as a supplement

Drum heaters 0 to +200 °C

Drum heater up to +200 °C

Function technically the same as the drum heaters 0 to +90 °C. With the user-friendly thermostat, setting range 0 – 200 °C, these drum heaters are perfect for almost any purpose (the maximum temperature may vary due to the maximum temperature of the liquids).

Technical specifications

  • • Silicone/glass fabric jacket
  • • Fiberglass insulation
  • • Silicone-insulated spiral resistor element
  • • Adjustable quick-release fasteners
  • • Supply cable (assembled with CH plug) 3 m
  • • Standard sizes, e.g. 200 l
  • • Thermostat 0-200 °C
  • • Heating time ~ 24 hours (200 l water from +15 °C to +82 °C with a 1200 W drum heater)
  • • Barrel underfloor heating can also be used
  • • Protection class IP40
  • • Only to be used for metal drums

Drum heaters for food

Keep frost-free or keep viscosity constant

Our high-temperature drum heaters are suitable for the food and pharmaceutical industries.

Ideal for heating liquids in metal drums. Simple, fast and safe heating up to 120°C. The drum heaters are equipped with 2 thermostats for precise heating.

Made from special silicone materials that comply with industry regulations and are durable. The fastening elements are fitted with straps to facilitate the transportation of the drums.

Technical specifications

  • • Silicone/glass fabric jacket
  • • Fiberglass jacket
  • • Silicone-insulated, spirally wound resistor element
  • • Adjustable straps with quick-release fastener
  • • Standard size 200L
  • • Supply cable (prefabricated with CH plug) 3 m long
  • • Digitally adjustable thermostat 0-120°C
  • • Protection class IP54
  • • Warm-up time ~ 24h (200 L water from +15ºC to +80ºC with a 1200 W drum heater)

Drum floor heater 0 to 120 °C

Keep frost-free or keep viscosity constant

In contrast to conventional drum heaters, the drum bottom heater heats the metal drums from the bottom.

Due to its diameter of 550 mm, this Type can be used for standard drums up to 200 l.

The drum floor heater is equipped with a built-in thermostat for the range 0 to +120 °C. The set temperature is ensured by the thermostat and is easy to operate.

If the heating process is to be faster than the drum base heater alone can guarantee, it can simply be combined with a conventional drum heater.

Drum bottom heaters are suitable for heating many different liquids, e.g. diesel, resin, oil, water and many other industrial liquids.

Technical specifications

  • • Voltage / power: 230 V / 900 W
  • • Heating element: Glass-impregnated silicone heating mat with wire element
  • • Insulation: 50 mm high-density rock wool
  • • Mains cable: 2 m, pre-assembled with CH plug
  • • Digital thermostat 0 – 120 °C
  • • Weight: 15 kg
  • • Easy to use together with other drum heaters or insulating jackets for faster heating
  • • Please note: Only to be used for metal drums

Article no. Container Grösse Spannung Leistung Einsatztemperatur

KU 209764

IBC 1000 L

4400 × 1000 mm

230 V

2 × 1000 W

0 – 90 °C

KU 209763

IBC 1000 L

4400 × 1000 mm

230 V

1300 W

0 – 40 °C

KU 209892

IBC 1000 L

4400 × 1000 mm

110 V

2 × 1000 W

0 – 90 °C

KU 209893

IBC 1000 L

4400 × 1000 mm

110 V

1300 W

0 – 40 °C

KU 209711

IBC 1000 L

4400 × 1000 mm

230 V

3 × 1000 W

0 – 90 °C

KU 209712

Insulating lid

N/A

N/A

N/A

0 – 90 °C

KU 209894

Waterproof PVC cover

N/A

N/A

N/A

0 – 90 °C

KU 209895

Insulating jacket

N/A

N/A

N/A

0 – 90°C

KU 239027

Deluxe insulating cover

1200 x 1000 x 1140 mm

N/A

N/A

0 – 90°C

KU 239024

Fully insulated cover (with openings)

1200 x 1000 x 1140 mm

N/A

N/A

0 – 90 °C

KU 239023

Fully insulated cover (without openings)

1200 x 1000 x 1140 mm

N/A

N/A

0 – 90 °C

Article no. Container Grösse Spannung Leistung Einsatztemperatur

KU 239038

IBC 1000 L

4400 x 1000 mm

230 V

1300 W

0 – 40 °C

KU 239017

IBC 1000 L

4400 x 1000 mm

230 V

2 x 1000 W

0 – 90 °C

KU 239016

Insulating lid

1200 x 1000 x 150 mm

N/A

N/A

0 – 90 °C

Article no. Barrels Abmessung Spannung Leistung

KU 209882

200 L

1990 × 800 mm

230 V

1200 W

KU 209883

200 L

1990 × 800 mm

110 V

1200 W

KU 209884

200 L

1990 × 450 mm

230 V

530 W

KU 209885

200 L

1990 × 450 mm

110 V

530 W

KU 239034

105 L

1650 x 700 mm

230 V

640W

KU 209886

105 L

1650 × 370 mm

230 V

400 W

KU 209887

50 – 60 L

1330 × 460 mm

230 V

300 W

KU 209888

50 – 60 L

1330 × 460 mm

110 V

300 W

KU 209889

25 – 30 L

1200 × 400 mm

230 V

225 W

KU 209890

25 – 30 L

1200 × 400 mm

110 V

225 W

KU 209891

Insulating lid

N/A

N/A

N/A

KU 238896

Waterproof PVC cover

Ø650 x 850 mm (for container circumference 1820 – 1946 mm)

N/A

N/A

Article no. Barrels Abmessung Spannung Leistung

KU 209835

200 L

1990 × 800 mm

230 V

1200 W

KU 209881

200 L

1990 × 800 mm

110 V

1200 W

KU 209836

200 L

1990 × 800 mm

230 V

1500 W

* KU 209877

200 L

1990 × 800 mm

230 V

2 × 1600 W

KU 239035

105L

1650 x 700 mm

230 V

1060W

KU 209878

105 L

1650 × 370 mm

230 V

700 W

KU 209879

50 L

1330 × 460 mm

230 V

440 W

KU 209880

25 L

1200 × 400 mm

230 V

380 W

KU 209837

Insulating lid

N/A

N/A

N/A

* with Velcro fastener over the entire height (instead of straps like the other Types)

Article no. Barrels Abmessung Spannung Leistung

KU 238917

200 L

1990 × 800 mm

230 V

2 x 600 W

KU 239036

200 L

1990 × 800 mm

230 V

1200 W

KU 239022

200 L

Insulating lid

N/A

N/A

Article no. Barrels Abmessung Spannung Leistung

* KU 209908

200 L made of metal (!)

ø 555 mm – Höhe 105 mm

230 V

900 W

* KU 230781

200 L made of metal (!)

ø 555 mm – Höhe 105 mm

110 V

900 W


* Please note: Only to be used for metal drums!

Article no. Barrels Abmessung Spannung Leistung

* KU 210004

200 L made of metal (!)

ø 540 mm – Höhe 85 mm

230 V

2000 W

* KU 239037

200 L made of metal (!)

ø 540 mm – Höhe 85 mm

230 V

1800W


* Please note: Only to be used for metal drums!
