Nozzle heating elements & tubular cartridges

Low-mass, high-density heating elements with which a very high output can be accommodated in a small space. They are available with or without built-in Thermocouples.
Request a Quote +41 62 887 23 33

Nozzle heating elements & tube cartridges RP / RPT

Low-mass, high-density heating elements with which a very high output can be accommodated in a small space. They are available with or without built-in Thermocouples.

Technical data

Dimensions

From diameter Ø 4 mm to Ø 32 mm and available in inches

Lengths (mm) (mm) (up to 3,000 mm (depending on diameter)
Stresses / Surface load

12 to 400V

max. 80 W per 100 mm Length (mm)

Temperature resistance

approx. 750 °C on the casing pipe

max. 200 °C at the connection area

Sheath material / Carrier material

Sheath material / Carrier material
Heatsealing band

All common heating conductor materials,
including NiCr 8020, CuNi 44
Versions

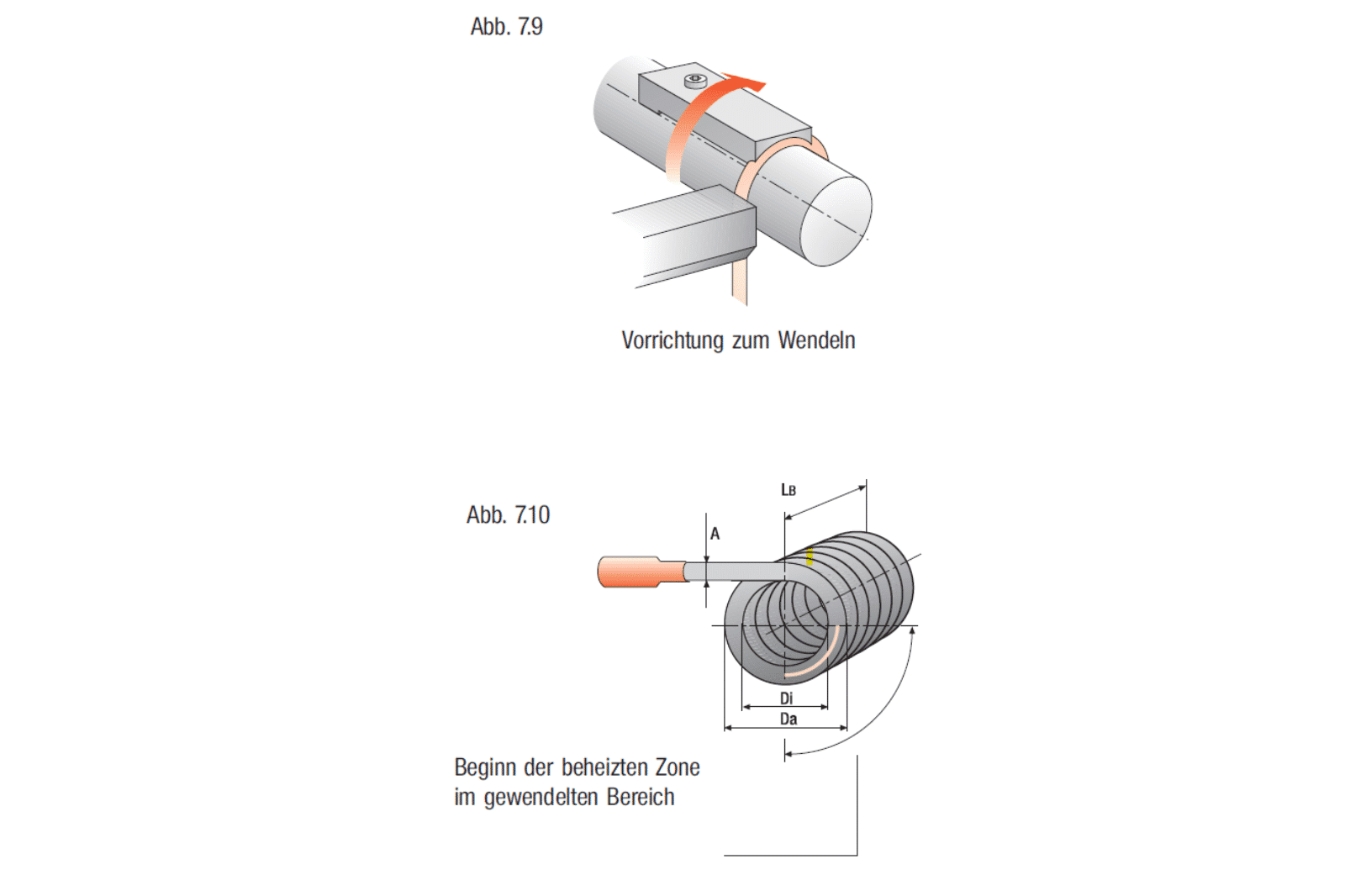

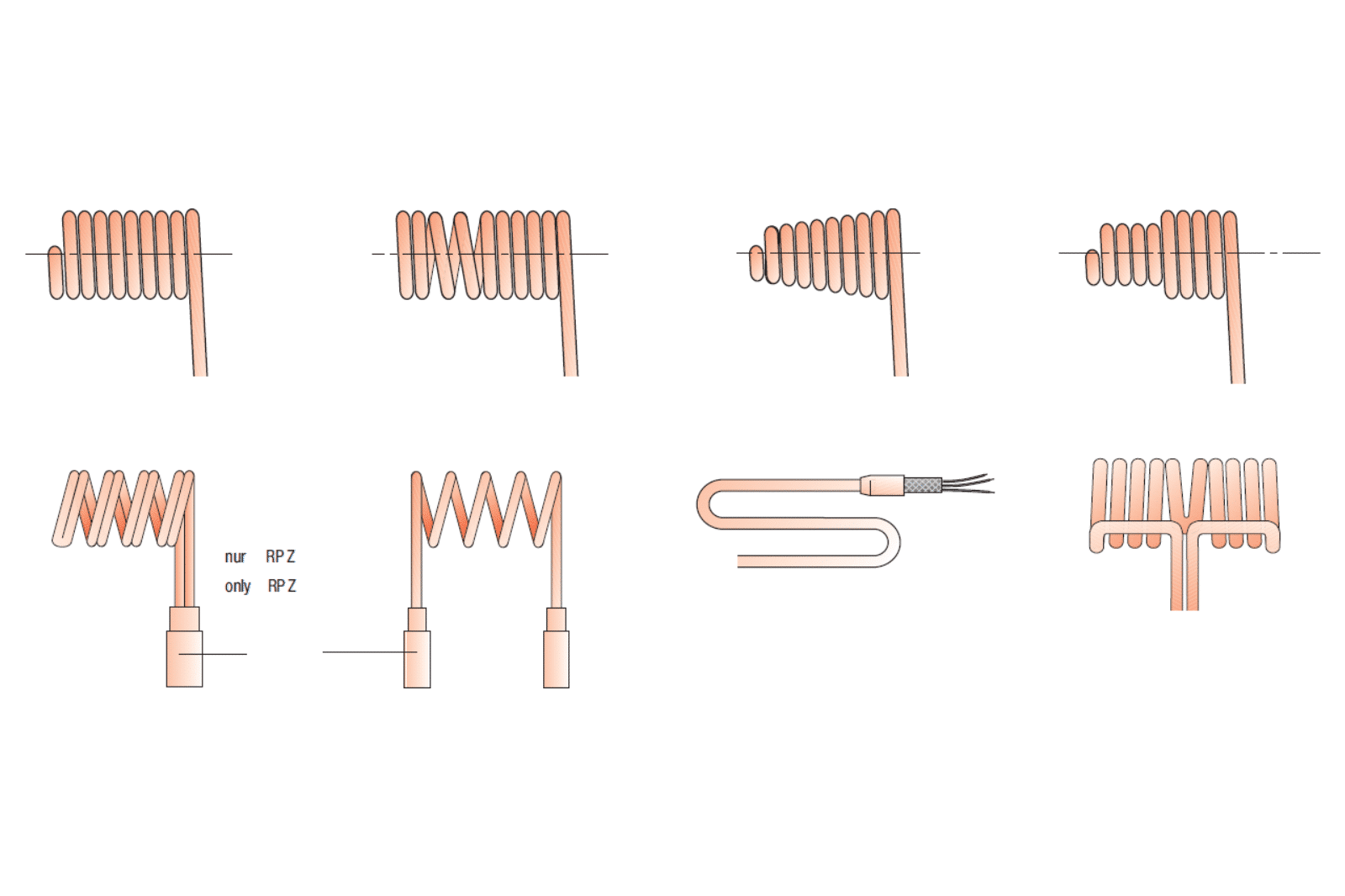

With clamp, special sleeve, available with integrated thermocouple Type J / K, available wound on core
Connections

Connection type/version and Connection length possible Acc. to customer request

Areas of application

  • • Heating of liquid pipes or gas pipes
  • • Plastics industry for heating nozzles and hot runner molds
  • • Laboratory technology
  • • Mechanical engineering
  • • Flue gas analyzers
  • • Sealing roller heating

High-performance RP / RPT tubular cartridges

Construction of RP / RPT tubular cartridges

High-performance tubular cartridges (RP) can also be equipped with NiCr-Ni thermocouples (RPT).

The position of the Measuring point is approx. 5 mm from the blind end. The Thermocouples are normally insulated from the sheath, but can be welded to the sheath and embedded in the blind end if required. Type RP and RPT heating elements are liquid-tight.

Tubular cartridge with clamping band or sleeve RP / RPT

Version with clamping sleeve

Wherever a firm connection between the part to be heated with a circular cross-section and the tubular cartridge is to be achieved, the use of a clamping band or sleeve is recommended. Tensioning straps with an internal diameter of up to 40 mm are tightened around the circumference using the appropriate number of hexagon socket screws and nuts.

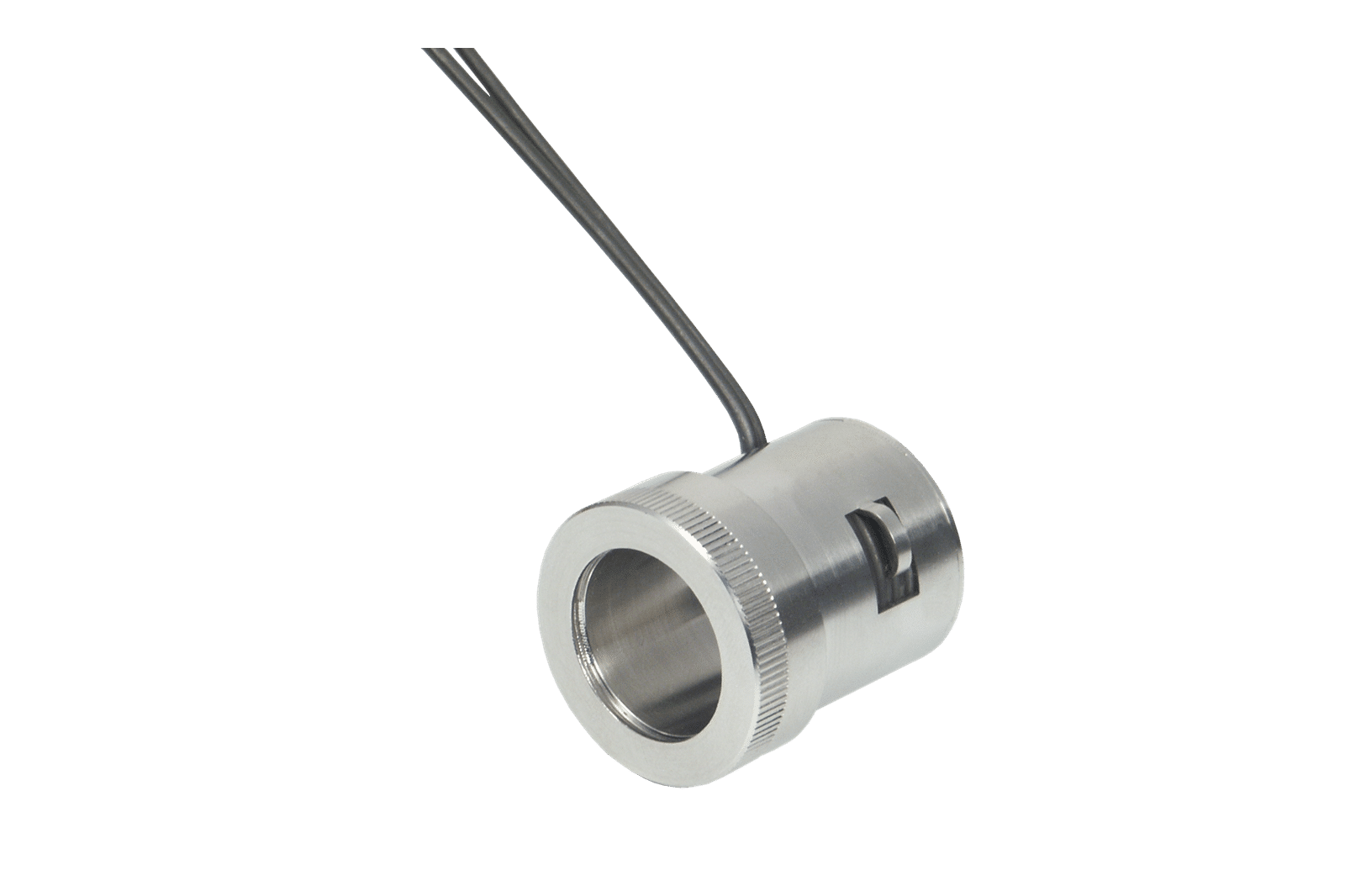

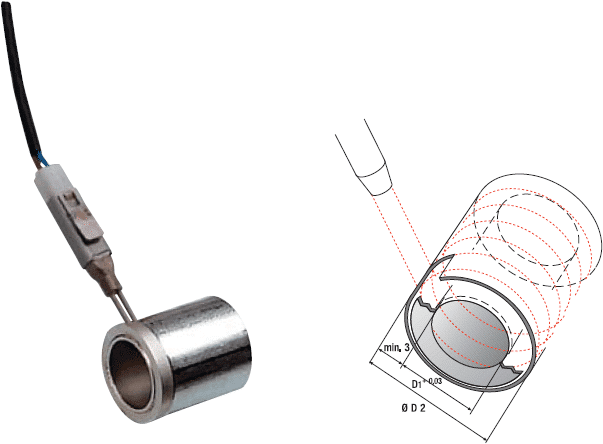

Hollow cartridges (HP / HPT)

Version with clamping sleeve

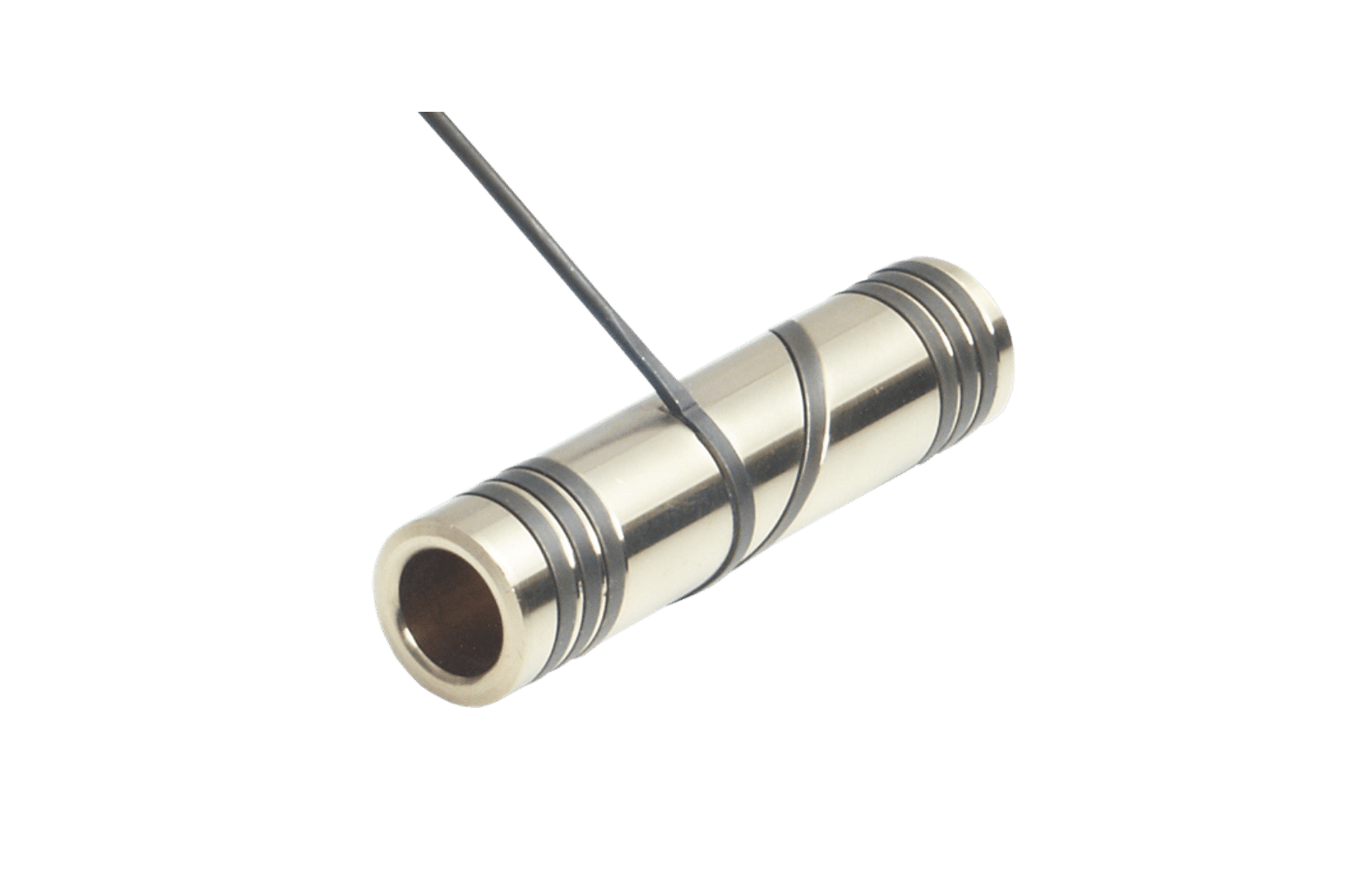

The hollow cartridges type HP/HP T consist of a tubular cartridge type RP/RPT, which is pressed onto a brass or stainless steel tube and fixed on the outside with a stainless steel protective tube. Due to the precisely fitting inner diameter, a good heat transfer to the part to be heated can be used for a variety of applications.

Construction

Heating

Tubular cartridge Type RP or RP T with different cross-sections
Inner tube

Brass, temperature resistant up to 450 °C or stainless steel temperature resistant up to 700 °C
Outer tube

CrNi steel
Connections

PTFE-insulated stranded wire with 1000 mm Length, other Connection lengths on request, additional braided wire conduit possible

Connection end can be Brought out radially or axially

Type (dimension of the RP) Article no. RP / RPT * Spannung / Leistung Beheizte Länge Gesamtlänge gestreckt

5.5 x 3.9 mm

TH 126500 / 126600

230 V / 315 W

300 mm

400 mm

5.5 x 3.9 mm

TH 126501 / 126601

230 V / 500 W

450 mm

550 mm

5.5 x 3.9 mm

TH 126502 / 126602

230 V / 800 W

700 mm

800 mm

5.5 x 3.9 mm

TH 126503 / 126603

230 V / 1000 W

900 mm

1000 mm

5.5 x 3.9 mm

TH 126504 / 126604

230 V / 1500 W

1350 mm*

1450 mm

5.5 x 3.9 mm

TH 126505 / 126605

230 V / 2000 W

1800 mm

1900 mm

* RPT –> with integrated Thermocouples TE, Type J (Fe-CuNi), insulated (Measuring point is approx. 5 mm from the blind end)

All types assembled with 1000 mm GLS strands type LEGLS up to 250°C (stretched version)

Other types upon request

Type (dimension of the RP) Article no. RP / RPT * Spannung / Leistung Beheizte Länge Gesamtlänge gestreckt

Ø 4.0 mm

TH 129913 / 129914

230 V / 200 W

250 mm

400 mm

Ø 4.0 mm

TH 129930 / 129900

230 V / 315 W

400 mm

550 mm

Ø 4.0 mm

TH 129931 / 129901

230 V / 400 W

600 mm

750 mm

Ø 4.0 mm

TH 129932 / 129902

230 V / 500 W

800 mm

950 mm

Ø 4.0 mm

TH 129933 / 129903

230 V / 630 W

1000 mm

1150 mm

Ø 4.0 mm

TH 129907 / 129909

230 V / 750 W

1200 mm

1350 mm

Ø 4.0 mm

TH 129908 / 129911

230 V / 1000 W

1500 mm

1650 mm

All types assembled with 1000 mm PTFE insulated Teflon strands Type LETEF up to 260°C (as stretched version)

* RPT –> with integrated Thermocouples TE, Type J (Fe-CuNi), insulated (Measuring point is approx. 5 mm from the blind end)

Other types upon request

Type (dimension of the RP) Article no. RP / RPT * Spannung / Leistung Beheizte Länge Gesamtlänge gestreckt

3.2 x 3.2 mm

TH 129128 / 129123

230 V / 180 W

300 mm

400 mm

3.2 x 3.2 mm

TH 129129 / 129124

230 V / 250 W

450 mm

550 mm

3.2 x 3.2 mm

TH 129130 / 129125

230 V / 315 W

550 mm

650 mm

3.2 x 3.2 mm

TH 129131 / 129126

230 V / 400 W

700 mm

800 mm

All types assembled with 1000 mm GLS strands type LEGLS up to 250°C (stretched version)

* RPT –> with integrated Thermocouples TE, Type J (Fe-CuNi), insulated (Measuring point is approx. 5 mm from the blind end)

Other types upon request

Type (dimension of the RP) Article no. RP / RPT * Spannung / Leistung Beheizte Länge Gesamtlänge gestreckt

Ø 3.0 mm

TH 129030 / 129000

230 V / 180 W

300 mm

400 mm

Ø 3.0 mm

TH 129031 / 129001

230 V / 250 W

450 mm

550 mm

Ø 3.0 mm

TH 129032 / 129002

230 V / 315 W

550 mm

650 mm

Ø 3.0 mm

TH 129033 / 129003

230 V / 400 W

700 mm

800 mm

All types assembled with 1000 mm PTFE insulated Teflon strands Type LETEF up to 260°C (as stretched version)

* RPT –> with integrated Thermocouples TE, Type J (Fe-CuNi), insulated (Measuring point is approx. 5 mm from the blind end)

Other types upon request

Type (dimension of the RP) Article no. RP / RPT * Spannung / Leistung Beheizte Länge Gesamtlänge gestreckt

2.5 x 4.0 mm

TH 124551 / 124561

230 V / 240 W

295 mm

355 mm

2.5 x 4.0 mm

TH 124553 / 124563

230 V / 400 W

500 mm

560 mm

2.5 x 4.0 mm

TH 124555 / 124565

230 V / 680 W

845 mm

905 mm

All types assembled with 1000 mm PTFE insulated Teflon strands Type LETEF up to 260°C (as stretched version)

* RPT –> with integrated Thermocouples TE, Type J (Fe-CuNi), insulated (Measuring point is approx. 5 mm from the blind end)

Other types upon request

Type (dimension of the RP) Article no. RP / RPT * Spannung / Leistung Beheizte Länge Gesamtlänge gestreckt

2.2 x 4.3 mm

TH 124200 / 124220

230 V / 180 W

300 mm

400 mm

2.2 x 4.3 mm

TH 124201 / 124221

230 V / 250 W

450 mm

550 mm

2.2 x 4.3 mm

TH 124202 / 124222

230 V / 315 W

550 mm

650 mm

2.2 x 4.3 mm

TH 124203 / 124223

230 V / 400 W

700 mm

800 mm

2.2 x 4.3 mm

TH 124204 / 124224

230 V / 500 W

800 mm

900 mm

2.2 x 4.3 mm

TH 124205 / 124225

230 V / 630 W

1000 mm

1100 mm

2.2 x 4.3 mm

TH 124206 / 124226

230 V / 750 W

1200 mm

1300 mm

* RPT –> with integrated Thermocouples TE, Type J (Fe-CuNi), insulated (Measuring point is approx. 5 mm from the blind end)

All types assembled with 1000 mm PTFE insulated Teflon strands Type LETEF up to 260°C (as stretched version)

Other types upon request

Type (dimension of the RP) Article no. RP Spannung / Leistung Beheizte Länge Gesamtlänge gestreckt

1.8 x 3.2 mm

TH 129170

230 V / 180 W

300 mm

400 mm

1.8 x 3.2 mm

TH 129171

230 V / 250 W

450 mm

550 mm

1.8 x 3.2 mm

TH 129172

230 V / 315 W

550 mm

650 mm

1.8 x 3.2 mm

TH 129173

230 V / 400 W

700 mm

800 mm

All types assembled with 1000 mm PTFE insulated Teflon strands Type LETEF up to 260°C (as stretched version)

Other types upon request
