Cartridge heaters

Metal-sheathed high-performance cartridge heater (HLP) with ground outer jacket made of stainless steel. Special construction and high compression allow an extremely high surface load, i.e. the accommodation of high power in a very small space. UL approved available.

Request a Quote +41 62 887 23 33

High-performance cartridge heaters HLP / HLPT

Diameter	Ø 2.0 mm – 32 mm and inch dimensions
Stresses / surface load	up to 800 V approx. 3-50 W/cm² depending on Type; with Ø 3 mm, 4 mm and 1/8″ inch up to 75 W/cm²can be realized
Temperature resistance	approx. 750 °C on the jacket
Sheath material / carrier material	CrNi steel, material no. 1.4541 or nickel 2.4060 on request MgO, highly compressed
Heatsealing band	All common heatsealing band materials, including NiCr 8020, CuNi 44
Versions	with integrated Thermocouples Type J, K as well as with Pt100 / Pt1000 / NTC possible
Connections	Connection type / Version and connection length possible according to customer requirements

Areas of application

• Apparatus engineering
• Foundries
• High vacuum technology
• Wooden machines
• Coffee machines
• Plastics industry
• Laboratory equipment
• Food industry
• Mechanical engineering
• Medical technology
• Paper machines
• Packaging machines

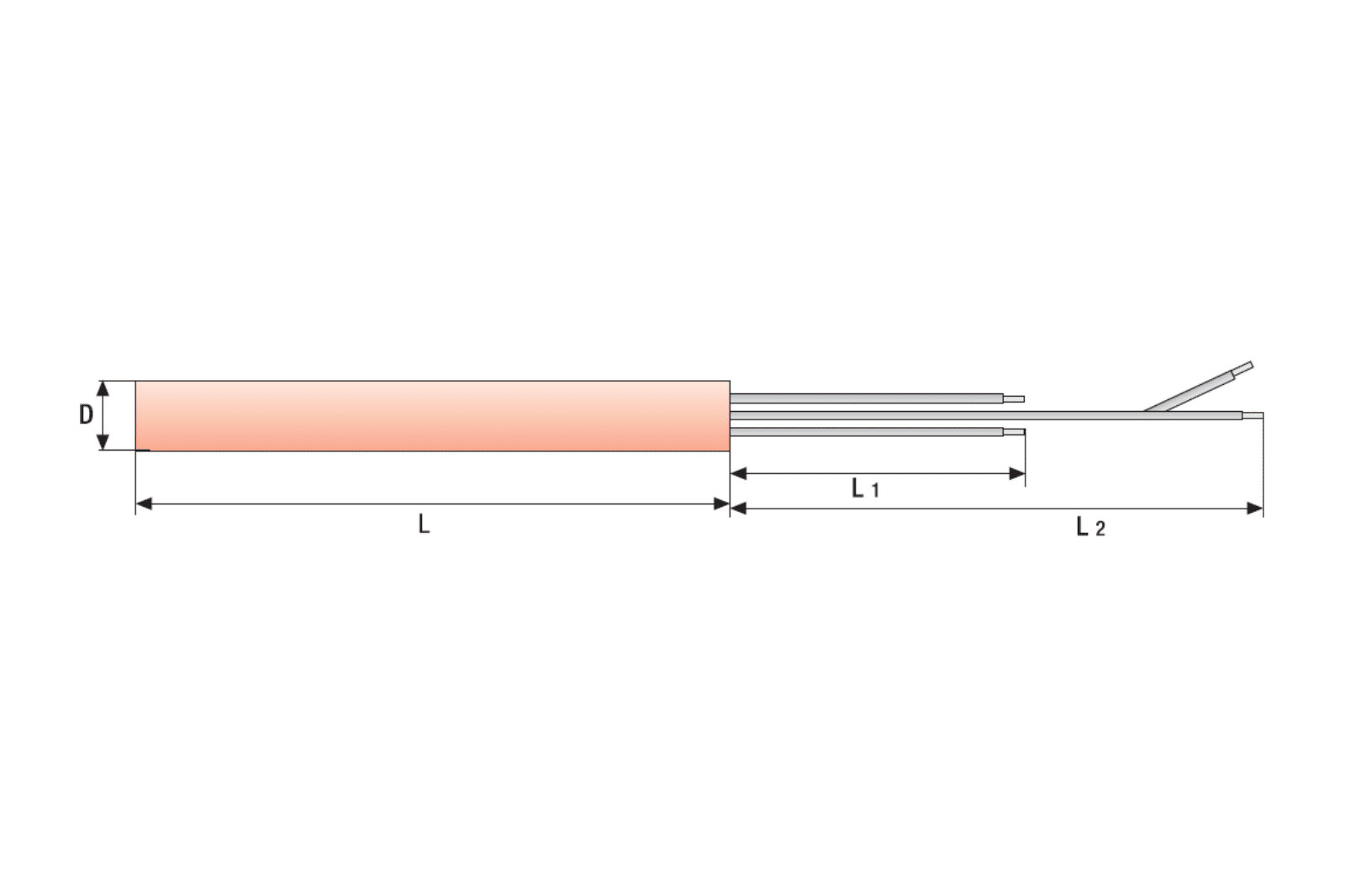

Cartridge heaters with integrated Thermocouples (HLPT)

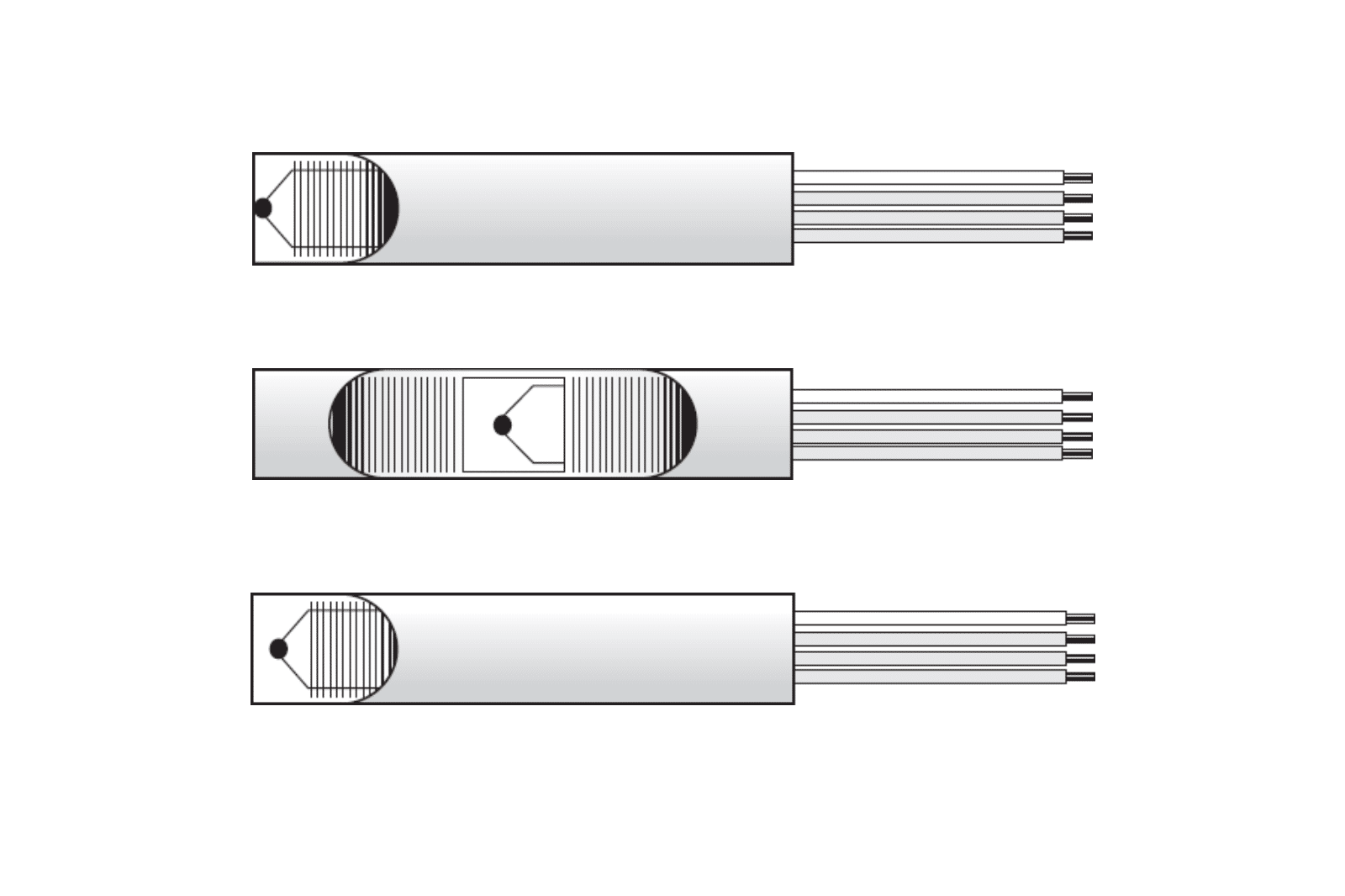

Thermocouples TE integrated in the HLP

The cartridge heaters are available with integrated thermocouples TE.

High-performance cartridges with permanently installed thermocouples are particularly suitable for internally heated nozzles and heated torpedoes where a separate Temperature probes cannot be accommodated in the workpiece for space reasons.

The thermocouples are fitted and potential-free insulated from the sheath or alternatively connected to the sheath.

Technical specifications

• available with Type J or Type K (color coding according to customer requirements)
• Diameter from Ø 4 mm to Ø 32 mm and available in inches
• Standard types are Fe-CuNi versions and equipped with 1000 mm Teflon-insulated LETEF

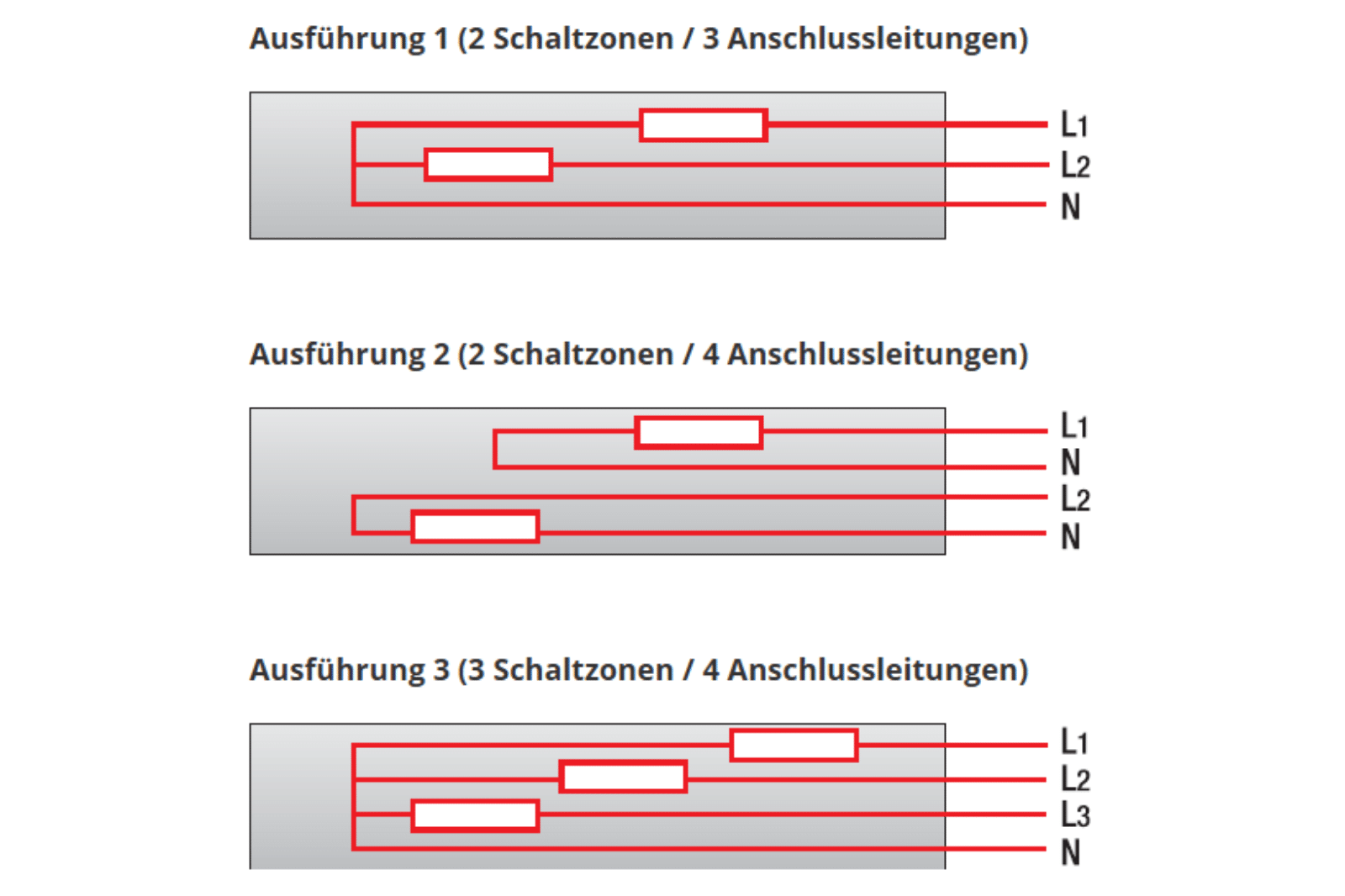

HLP cartridge heaters with power distribution

We have the option of assembling the heating cartridges with different power distributions according to customer requirements.

Mechanical & apparatus engineering

In mechanical and apparatus engineering, targeted heating and measuring technologies ensure uniform heat, stable processes and efficient production.

Plastics industry

In plastics processing, heaters and sensors ensure precise temperatures and pressure for stable processes and high quality.

Chemistry & Pharma

Precise temperature and pressure control is crucial in R&D for reliable, reproducible results. High-quality heating, measurement and control technology ensures…

Explosion protection

ATEX-compliant heating, measurement and control technology ensures maximum safety in potentially explosive atmospheres. Our portfolio offers robust gas valves, precise…

Research & Development

Precise temperature and pressure control is crucial in R&D for reliable, reproducible results. High-quality heating, measurement and control technology ensures…

All the following heating cartridges are standard HPL which are available at short notice.

Other versions in diameters Ø 6.5 / 8.0 / 10.0 / 12.5 / 16.0 and 20.0 mm are also available at short notice (list is still being compiled and will be added to on an ongoing basis).

We look forward to your inquiry.

Article no.	Diameter	Länge	Spannung / Leistung	Anschlussart	Anschlusslitzen
TH 121200	3.0 -0.01/-0.04 mm	30 mm	230 V / 50 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121201	3.0 -0.01/-0.04 mm	30 mm	230 V / 80 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121202	3.0 -0.01/-0.04 mm	40 mm	230 V / 40 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121203	3.0 -0.01/-0.04 mm	40 mm	230 V / 50 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121204	3.0 -0.01/-0.04 mm	40 mm	230 V / 80 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121205	3.0 -0.01/-0.04 mm	40 mm	230 V / 100 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121206	3.0 -0.01/-0.04 mm	50 mm	230 V / 50 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121207	3.0 -0.01/-0.04 mm	50 mm	230 V / 60 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121208	3.0 -0.01/-0.04 mm	50 mm	230 V / 80 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121209	3.0 -0.01/-0.04 mm	50 mm	230 V / 125 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121210	3.0 -0.01/-0.04 mm	60 mm	230 V / 60 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121211	3.0 -0.01/-0.04 mm	60 mm	230 V / 80 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121212	3.0 -0.01/-0.04 mm	60 mm	230 V / 125 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121213	3.0 -0.01/-0.04 mm	60 mm	230 V / 160 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C

Article no.	Diameter	Länge	Spannung / Leistung	Anschlussart	Anschlusslitzen
TH 121100	3.1 +0.02/+0.05 mm	30 mm	230 V / 50 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121101	3.1 +0.02/+0.05 mm	30 mm	230 V / 80 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121102	3.1 +0.02/+0.05 mm	40 mm	230 V / 40 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121103	3.1 +0.02/+0.05 mm	40 mm	230 V / 50 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121104	3.1 +0.02/+0.05 mm	40 mm	230 V / 80 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121105	3.1 +0.02/+0.05 mm	40 mm	230 V / 100 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121106	3.1 +0.02/+0.05 mm	50 mm	230 V / 50 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121107	3.1 +0.02/+0.05 mm	50 mm	230 V / 60 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121108	3.1 +0.02/+0.05 mm	50 mm	230 V / 80 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121109	3.1 +0.02/+0.05 mm	50 mm	230 V / 125 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121110	3.1 +0.02/+0.05 mm	60 mm	230 V / 60 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121111	3.1 +0.02/+0.05 mm	60 mm	230 V / 80 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121112	3.1 +0.02/+0.05 mm	60 mm	230 V / 125 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121113	3.1 +0.02/+0.05 mm	60 mm	230 V / 160 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C

Article no.	Diameter	Länge	Spannung / Leistung	Anschlussart	Anschlusslitzen
TH 121120	4.0 -0.01/-0.04 mm	40 mm	230 V / 30 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121121	4.0 -0.01/-0.04 mm	40 mm	230 V / 60 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121122	4.0 -0.01/-0.04 mm	40 mm	230 V / 100 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121123	4.0 -0.01/-0.04 mm	40 mm	230 V / 125 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121124	4.0 -0.01/-0.04 mm	40 mm	230 V / 160 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121125	4.0 -0.01/-0.04 mm	50 mm	230 V / 40 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121126	4.0 -0.01/-0.04 mm	50 mm	230 V / 80 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121127	4.0 -0.01/-0.04 mm	50 mm	230 V / 125 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121128	4.0 -0.01/-0.04 mm	50 mm	230 V / 160 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121129	4.0 -0.01/-0.04 mm	50 mm	230 V / 200 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121130	4.0 -0.01/-0.04 mm	60 mm	230 V / 50 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121131	4.0 -0.01/-0.04 mm	60 mm	230 V / 100 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121132	4.0 -0.01/-0.04 mm	60 mm	230 V / 140 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121133	4.0 -0.01/-0.04 mm	60 mm	230 V / 180 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121134	4.0 -0.01/-0.04 mm	60 mm	230 V / 220 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121135	4.0 -0.01/-0.04 mm	80 mm	230 V / 60 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121136	4.0 -0.01/-0.04 mm	80 mm	230 V / 125 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121137	4.0 -0.01/-0.04 mm	80 mm	230 V / 180 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121138	4.0 -0.01/-0.04 mm	80 mm	230 V / 220 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121139	4.0 -0.01/-0.04 mm	80 mm	230 V / 280 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C

Article no.	Diameter	Länge	Spannung / Leistung	Anschlussart	Anschlusslitzen
TH 121140	5.0 -0.01/-0.04 mm	40 mm	230 V / 40 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121141	5.0 -0.01/-0.04 mm	40 mm	230 V / 80 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121142	5.0 -0.01/-0.04 mm	40 mm	230 V / 125 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121143	5.0 -0.01/-0.04 mm	40 mm	230 V / 160 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121144	5.0 -0.01/-0.04 mm	40 mm	230 V / 200 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121145	5.0 -0.01/-0.04 mm	50 mm	230 V / 50 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121146	5.0 -0.01/-0.04 mm	50 mm	230 V / 100 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121146	5.0 -0.01/-0.04 mm	50 mm	230 V / 100 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121147	5.0 -0.01/-0.04 mm	50 mm	230 V / 140 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121148	5.0 -0.01/-0.04 mm	50 mm	230 V / 180 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121149	5.0 -0.01/-0.04 mm	50 mm	230 V / 220 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121150	5.0 -0.01/-0.04 mm	60 mm	230 V / 60 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121151	5.0 -0.01/-0.04 mm	60 mm	230 V / 125 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121152	5.0 -0.01/-0.04 mm	60 mm	230 V / 160 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121153	5.0 -0.01/-0.04 mm	60 mm	230 V / 200 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121154	5.0 -0.01/-0.04 mm	60 mm	230 V / 250 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121155	5.0 -0.01/-0.04 mm	80 mm	230 V / 80 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121156	5.0 -0.01/-0.04 mm	80 mm	230 V / 140 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121157	5.0 -0.01/-0.04 mm	80 mm	230 V / 180 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121158	5.0 -0.01/-0.04 mm	80 mm	230 V / 220 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121159	5.0 -0.01/-0.04 mm	80 mm	230 V / 280 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121160	5.0 -0.01/-0.04 mm	100 mm	230 V / 100 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121161	5.0 -0.01/-0.04 mm	100 mm	230 V / 160 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121162	5.0 -0.01/-0.04 mm	100 mm	230 V / 200 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121163	5.0 -0.01/-0.04 mm	100 mm	230 V / 250 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
TH 121164	5.0 -0.01/-0.04 mm	100 mm	230 V / 315 W	DIRFLEX (direct flexible lead-out)	1000 mm LETEF, Teflon-insulated stranded wire up to 260°C
